Pro Series Chassis Brake Plumbing Kit, 1973-87 C10

Level 7 developed this brake line kit specifically for the popular 73-87 Pro Touring Chevy C10 Trucks. It was designed to work with Wilwood's Tandem Master Cylinder and combination proportioning valve. This kit can be used on your stock C10 frame only. Please choose your current brake option from the drop down.

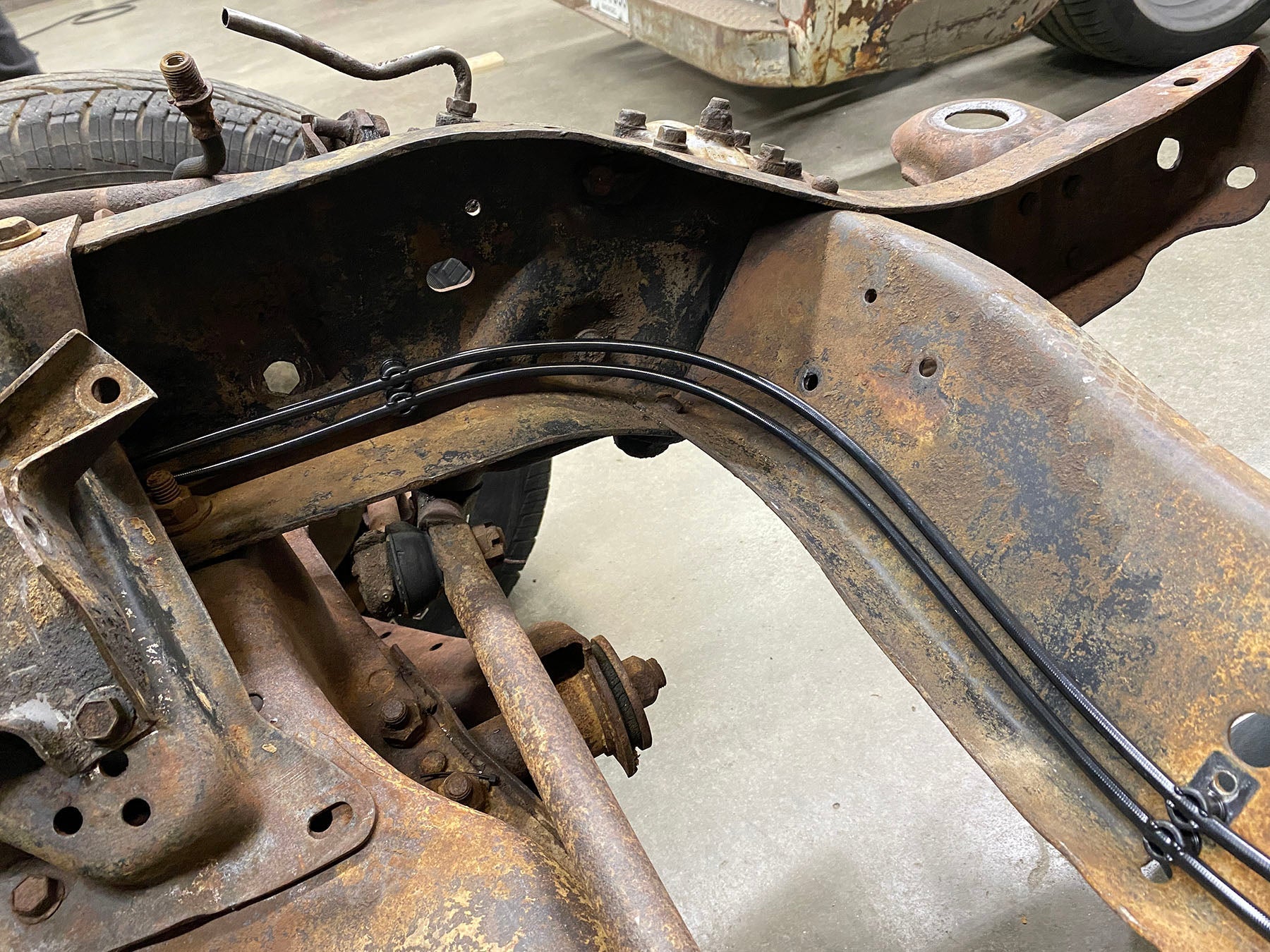

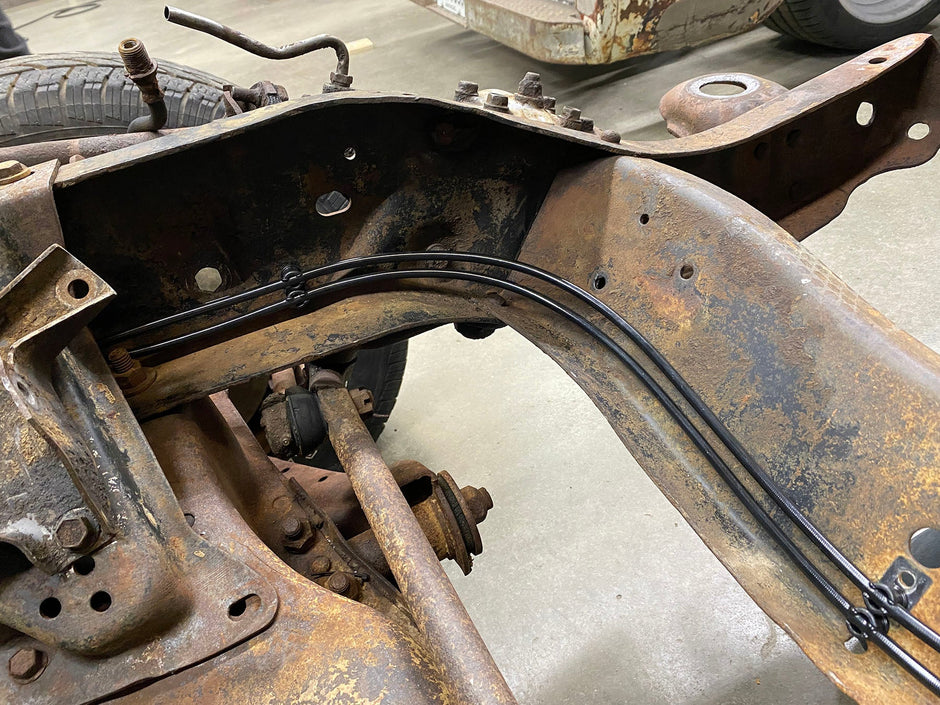

The brake lines in this kit follow the factory routing line while adding a clean and modern look on your classic truck.

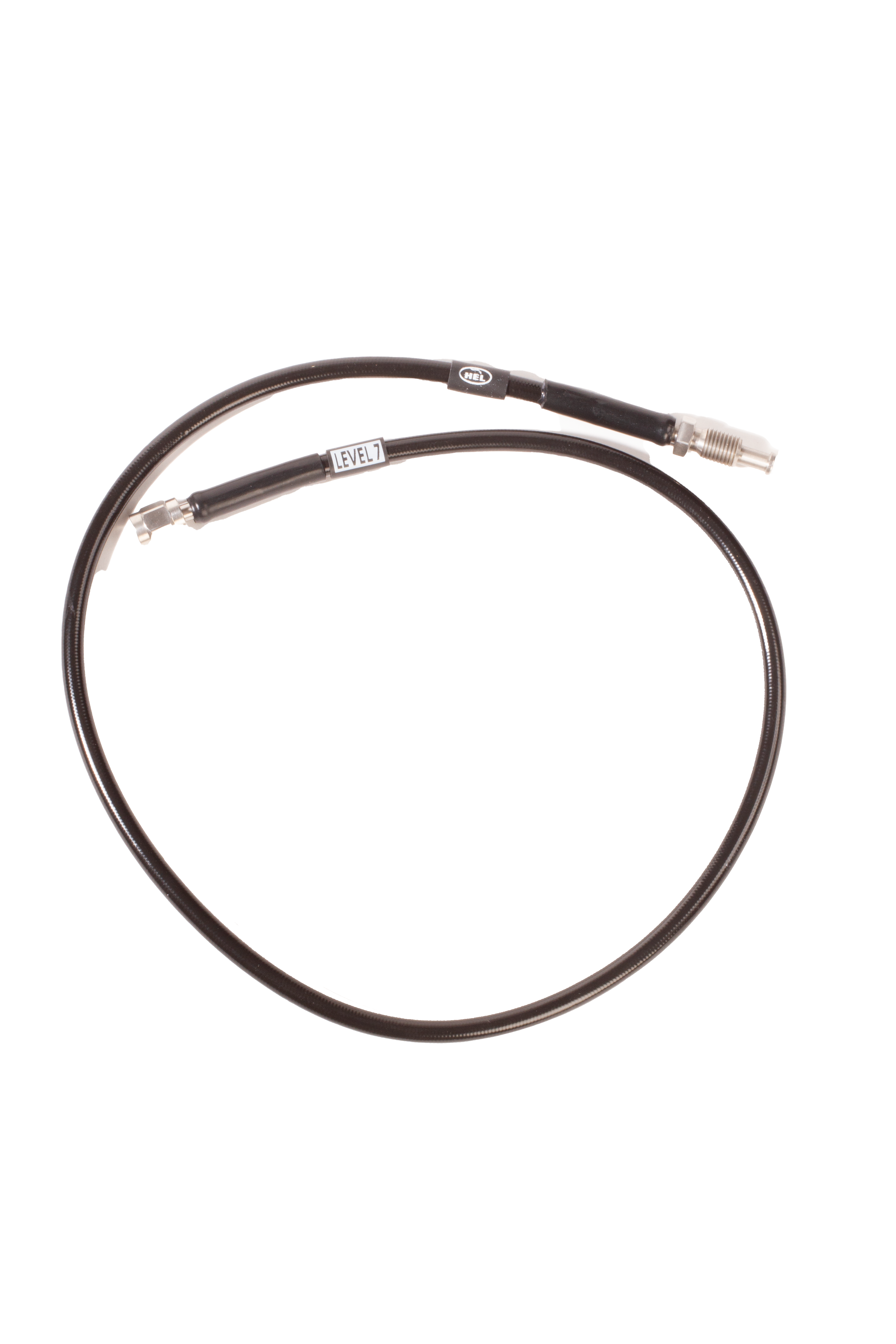

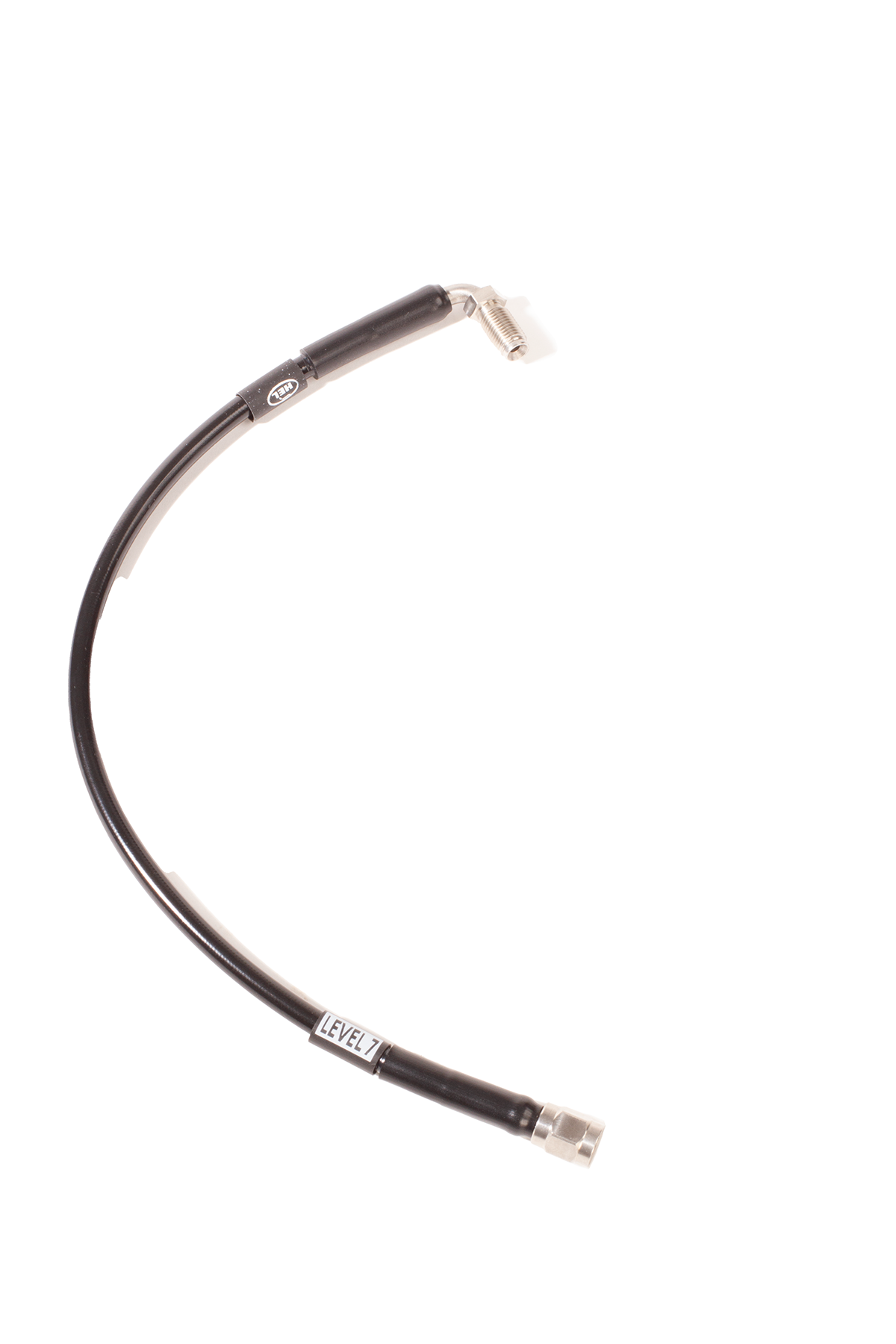

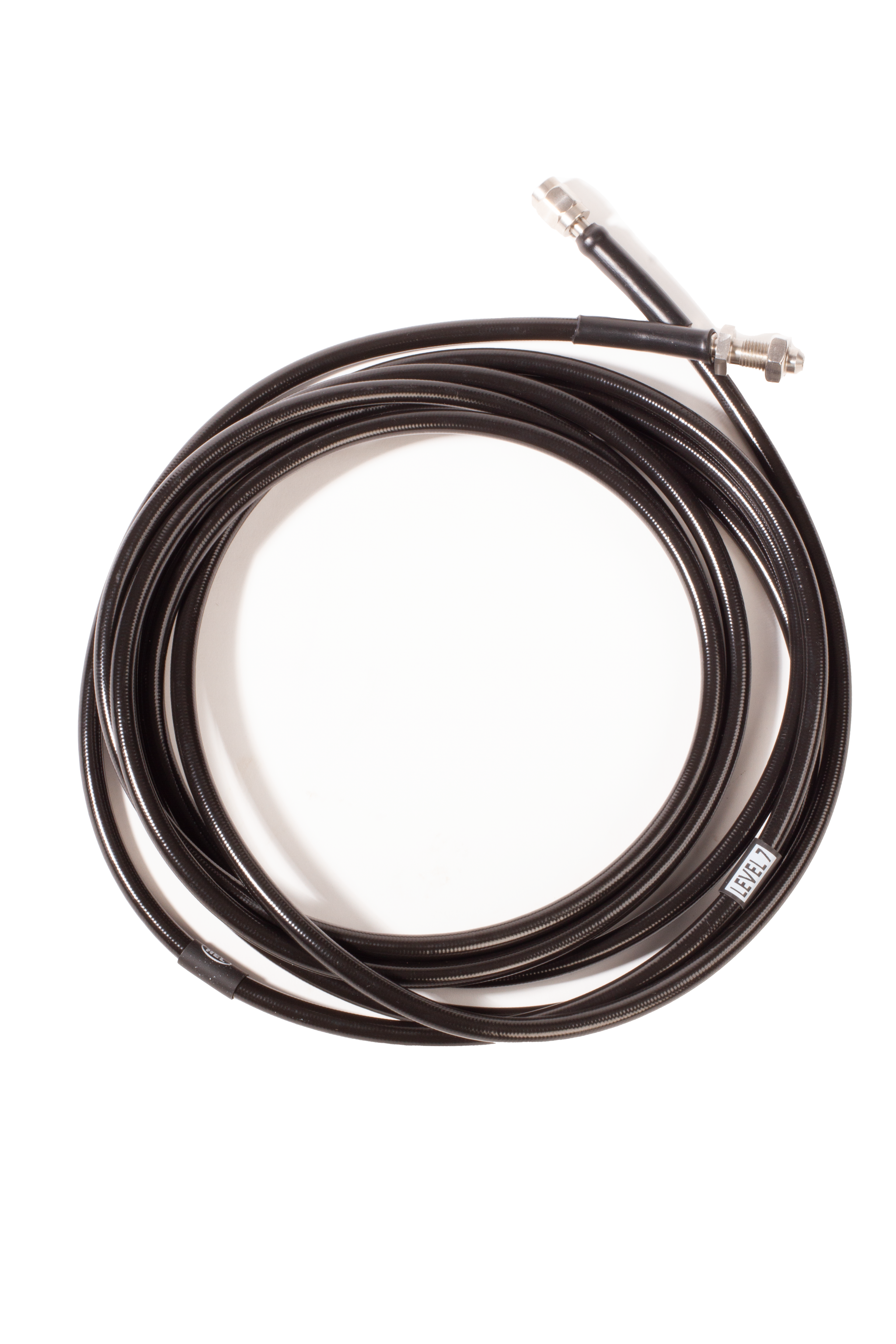

The lines in this kit feature a PTFE-coated inner lining that is compatible with all fluids and is wrapped in a braided stainless steel cover to resist abrasion and corrosion. Then they are covered with a special PVC coated material for maximum durability against debris and abrasion.  All hoses use stainless steel hose ends for many years of corrosion resistance and durability.  The hoses are all DOT approved and are all crimped by the manufacturer.

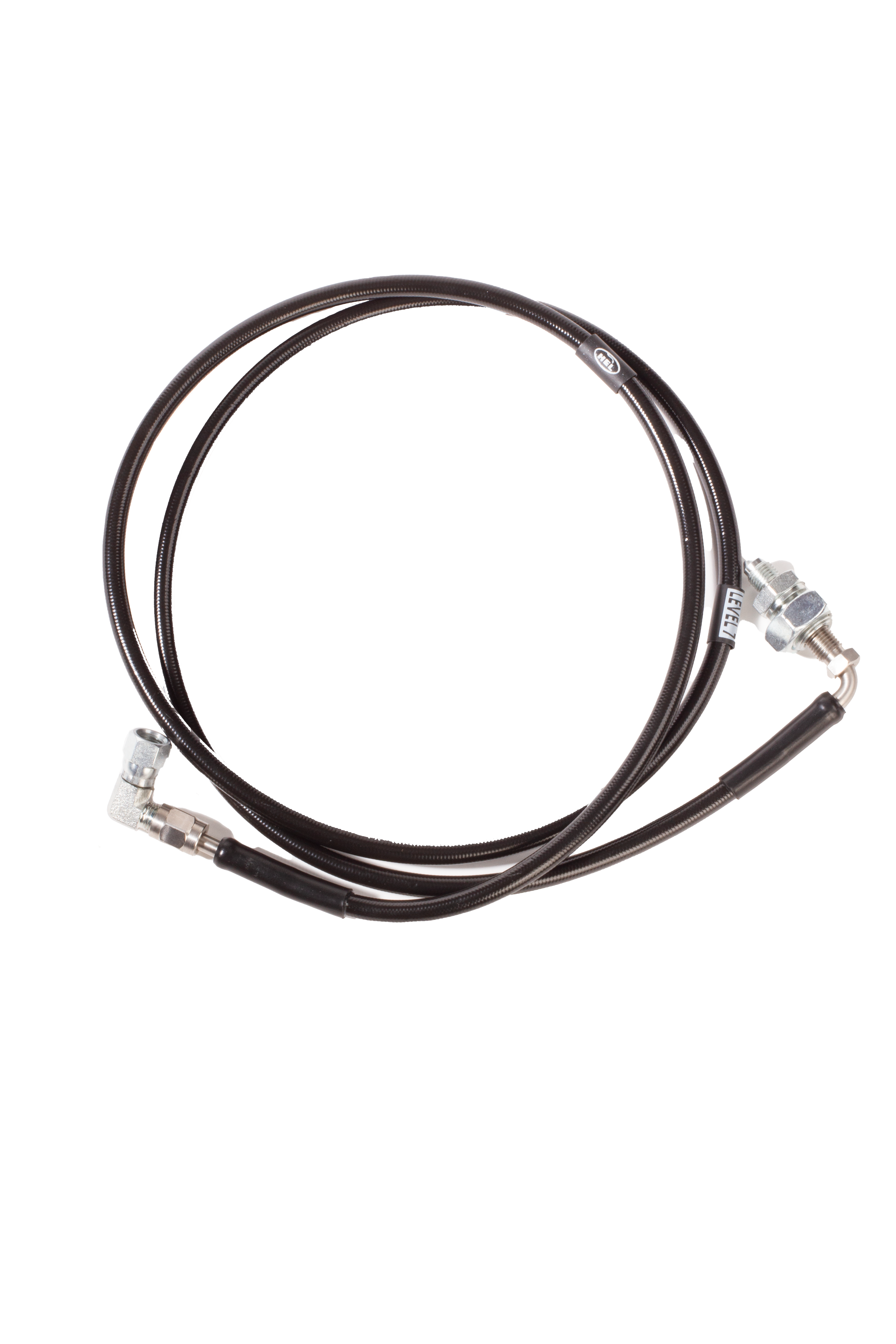

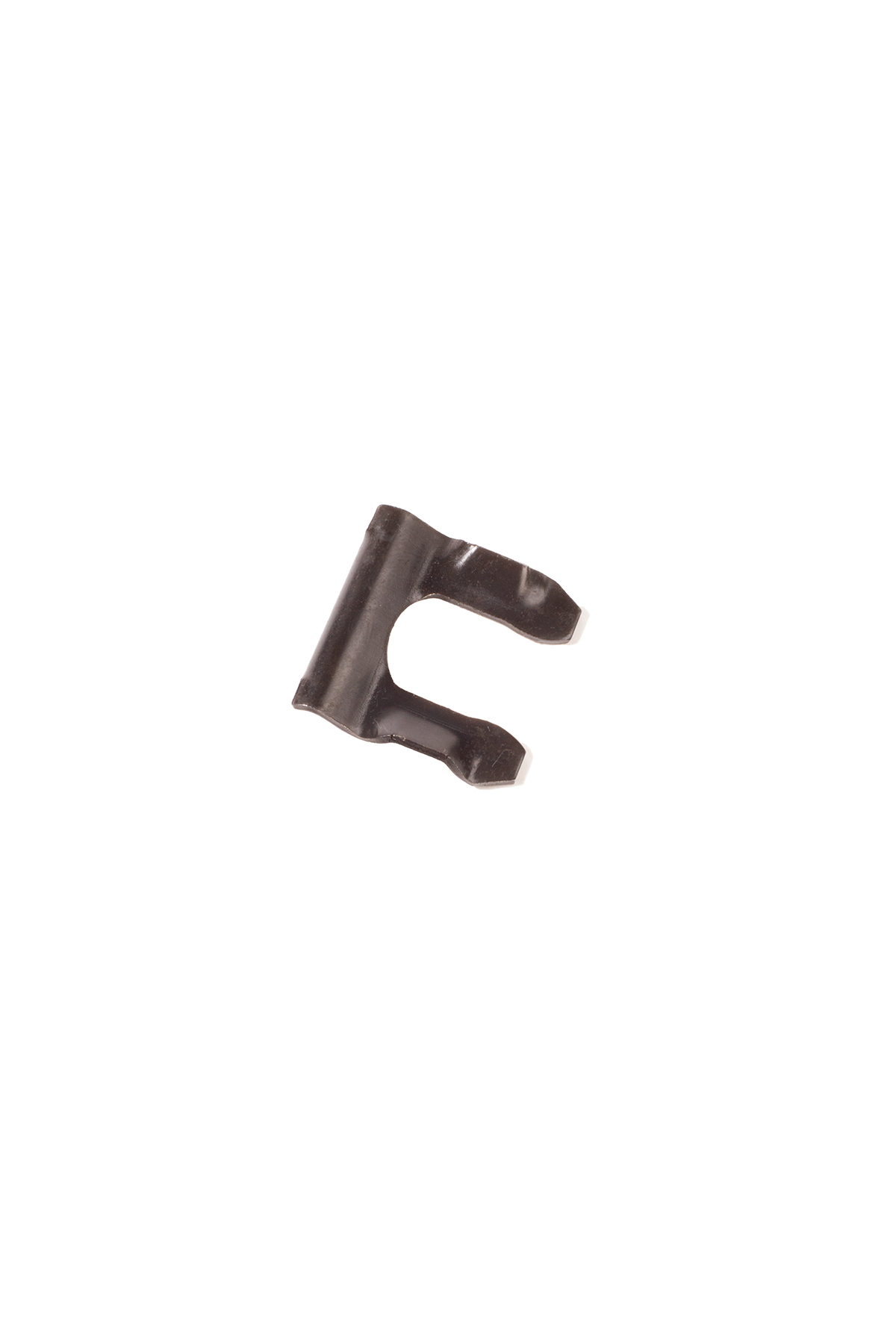

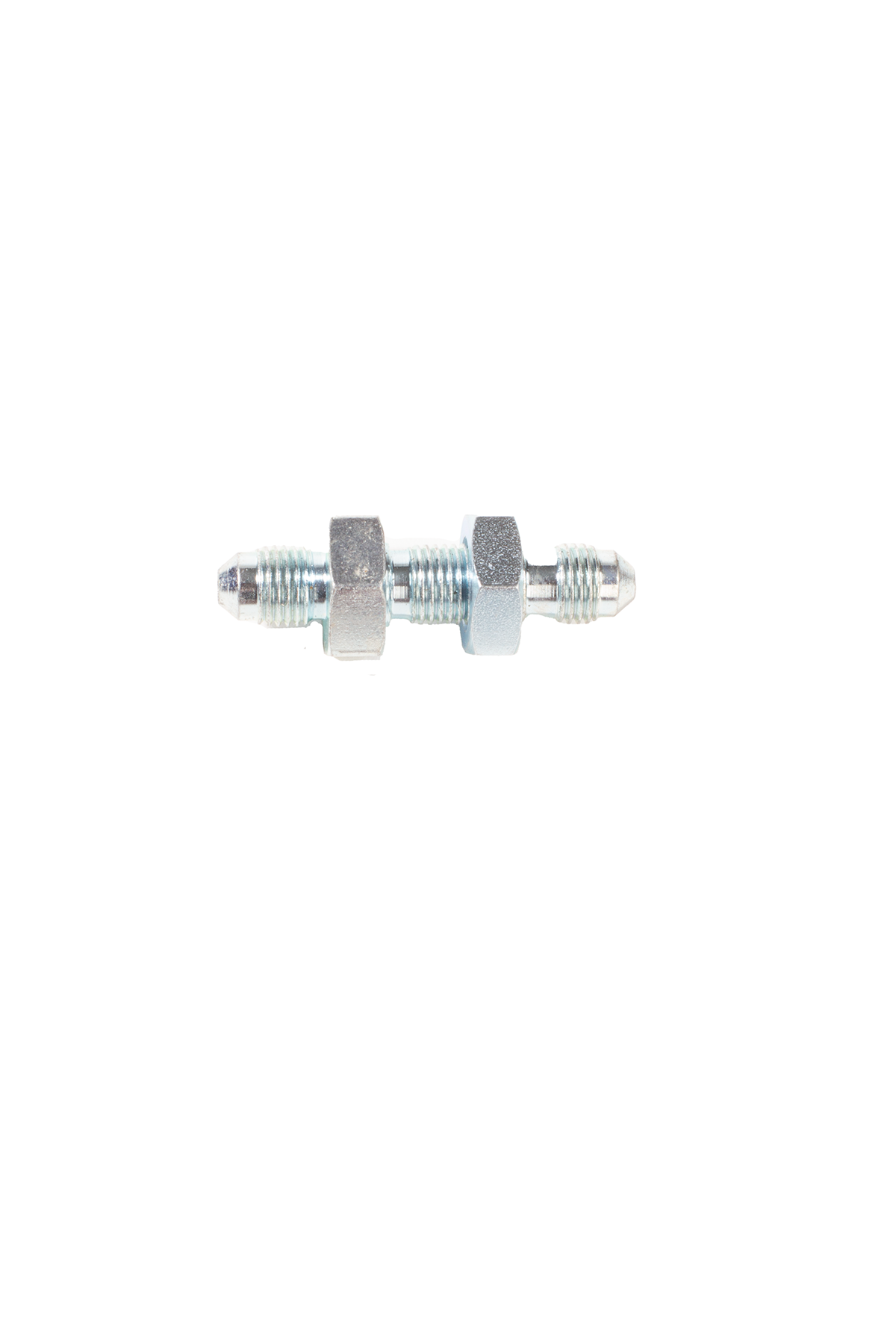

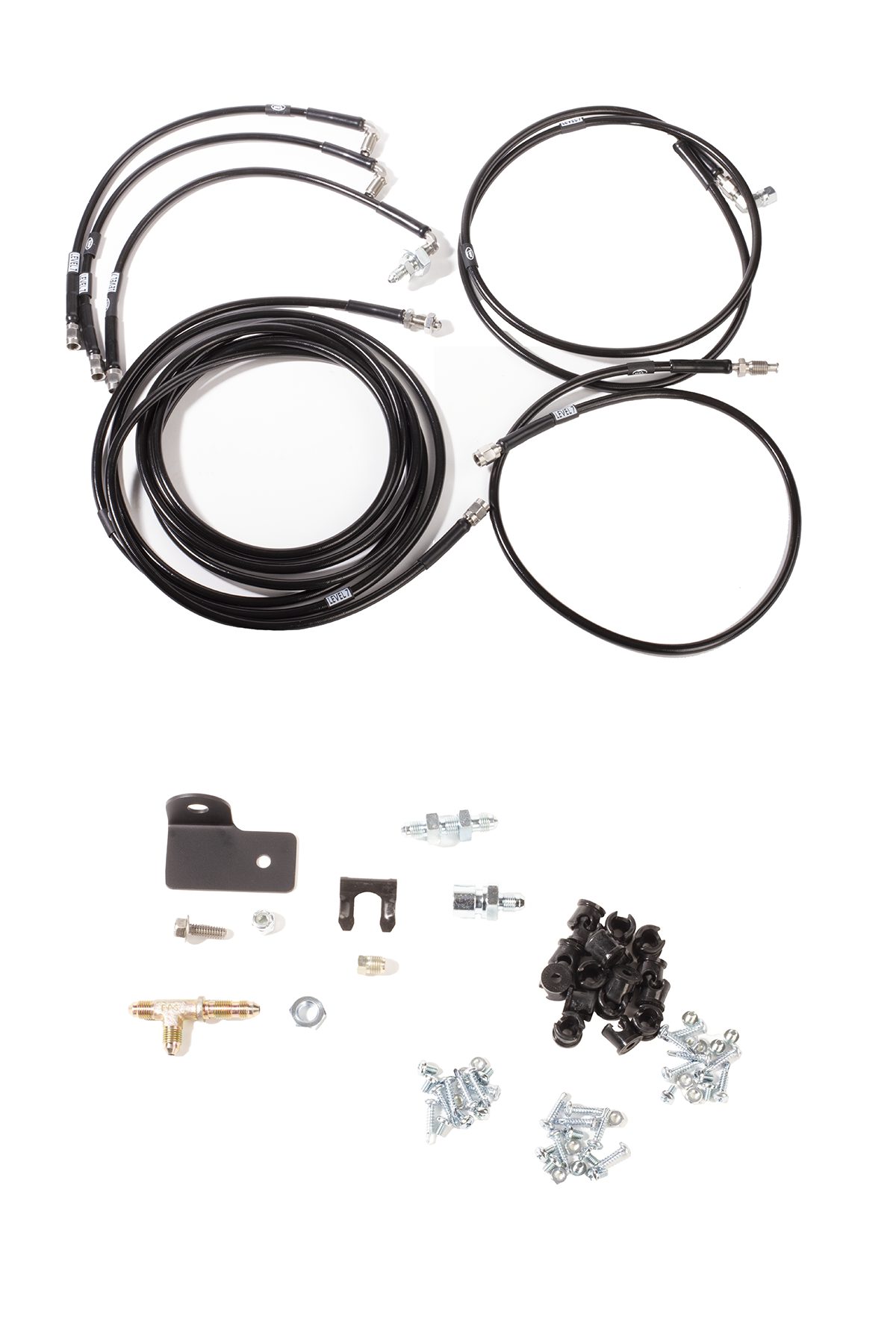

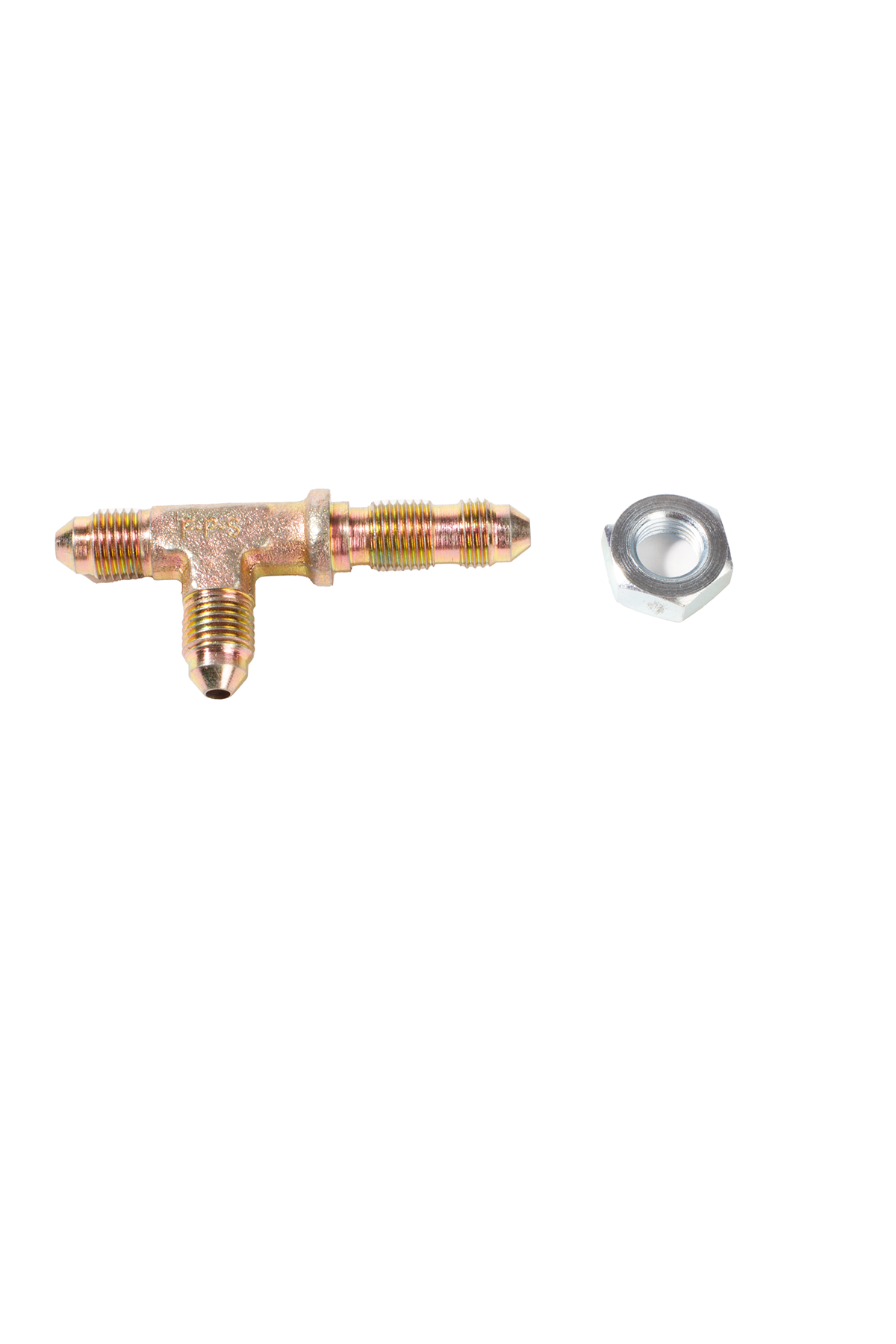

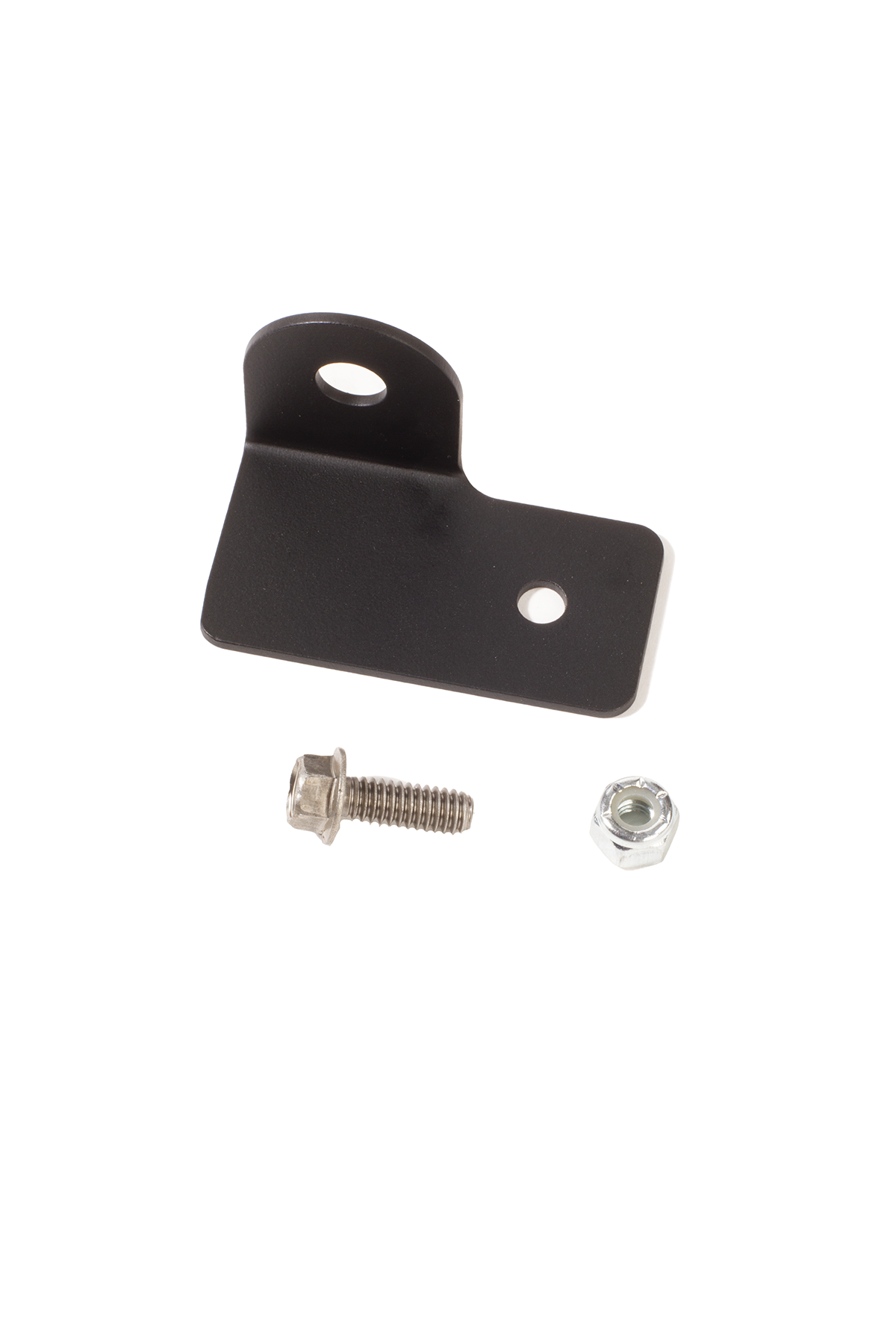

Included in the kit are the hoses from the master cylinder to the chassis, chassis bulkhead fittings and bracket, hoses for the front left and right that terminate exiting the frame, and a rear hose in two parts that terminates on the factory frame hose bracket.  Brake calipers hoses and rear axle plumbing are not included.

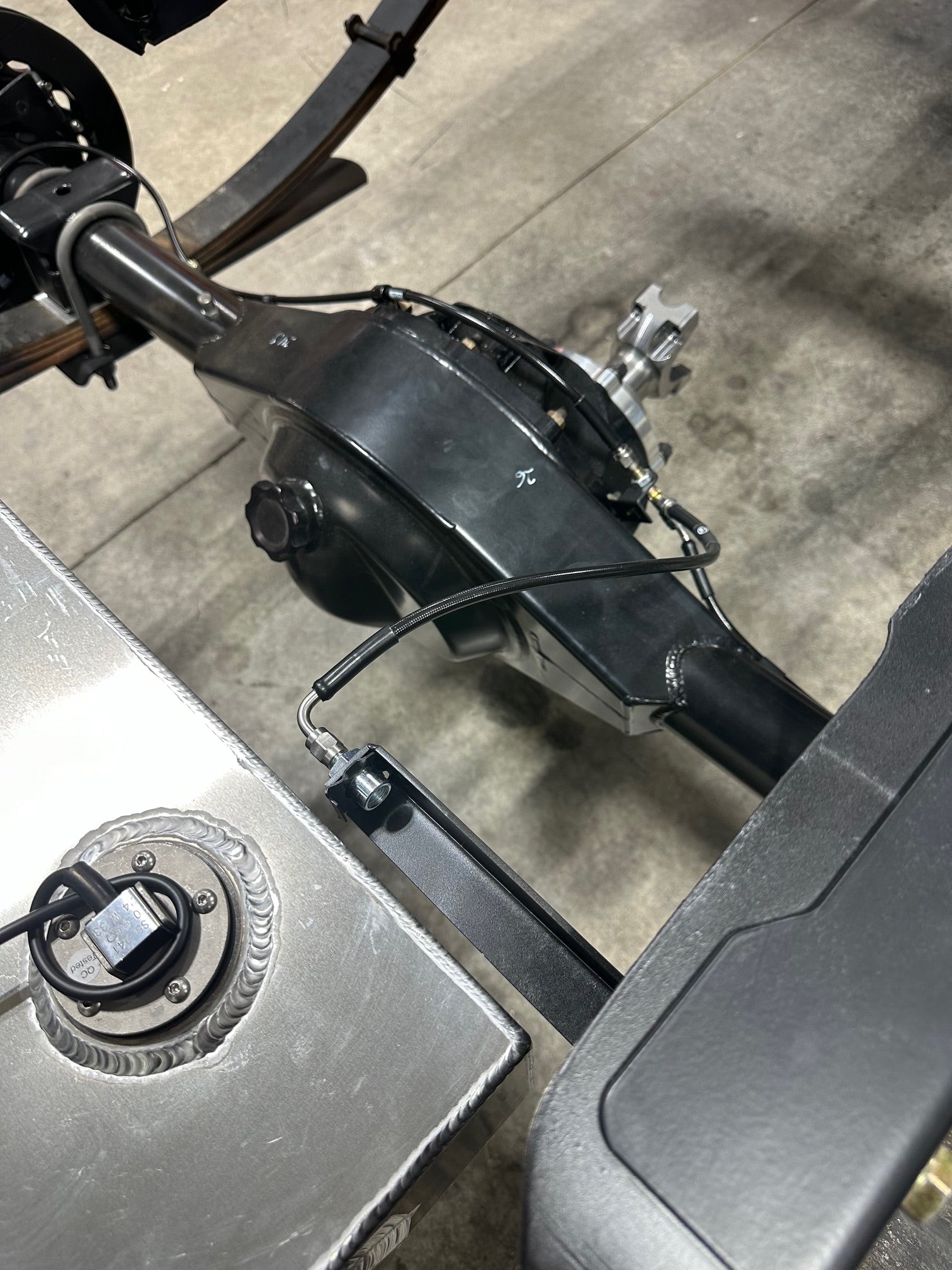

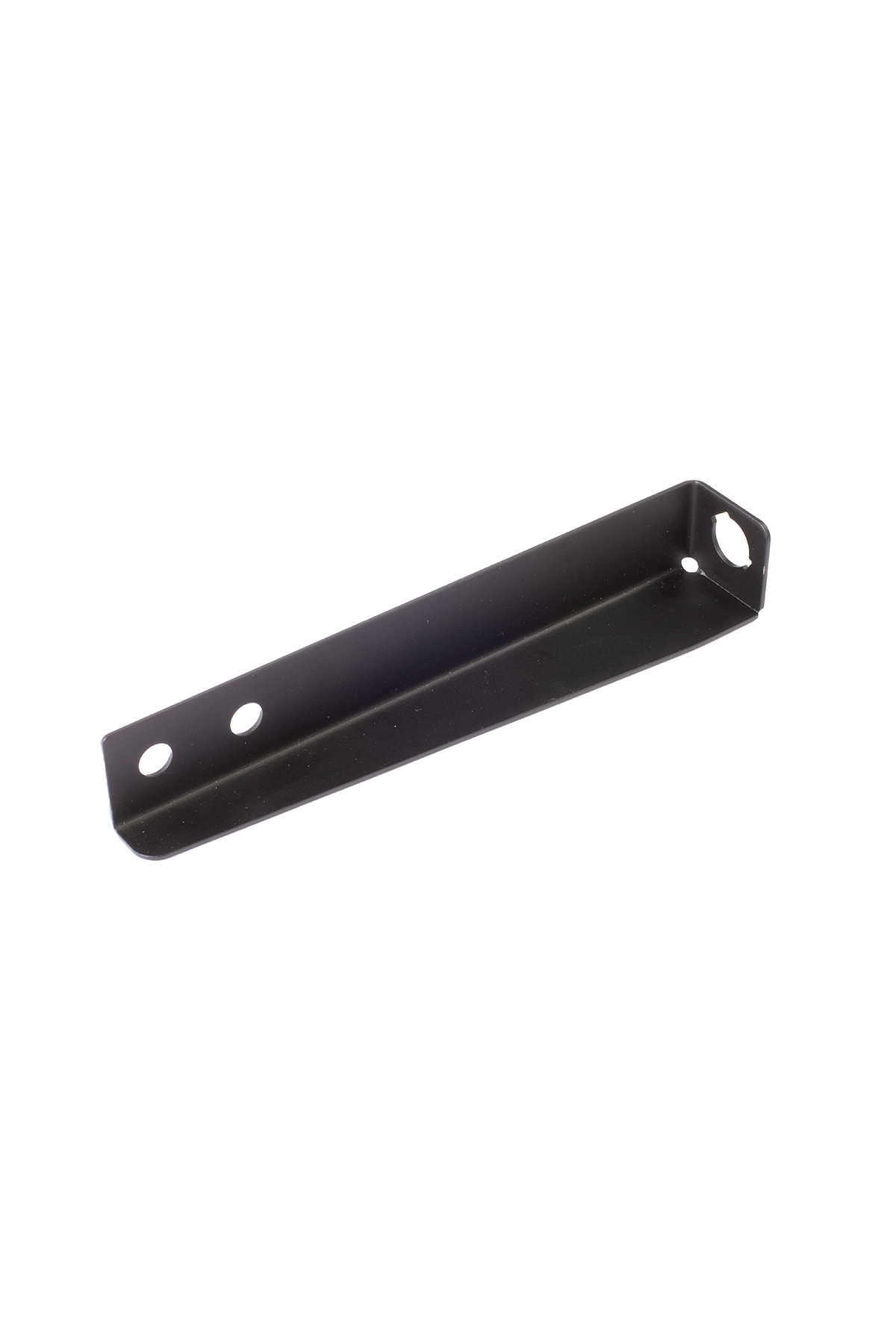

Optional: Rear whip hose bracket for use with rear mounted fuel tanks.  Factory bracket will interfere with whip hose if using a rear mounted tank. (See pics 13 & 14)

• DOT approved hose kit to plumb your factory 73-87 C10 chassis.
• Installs easily and quickly!

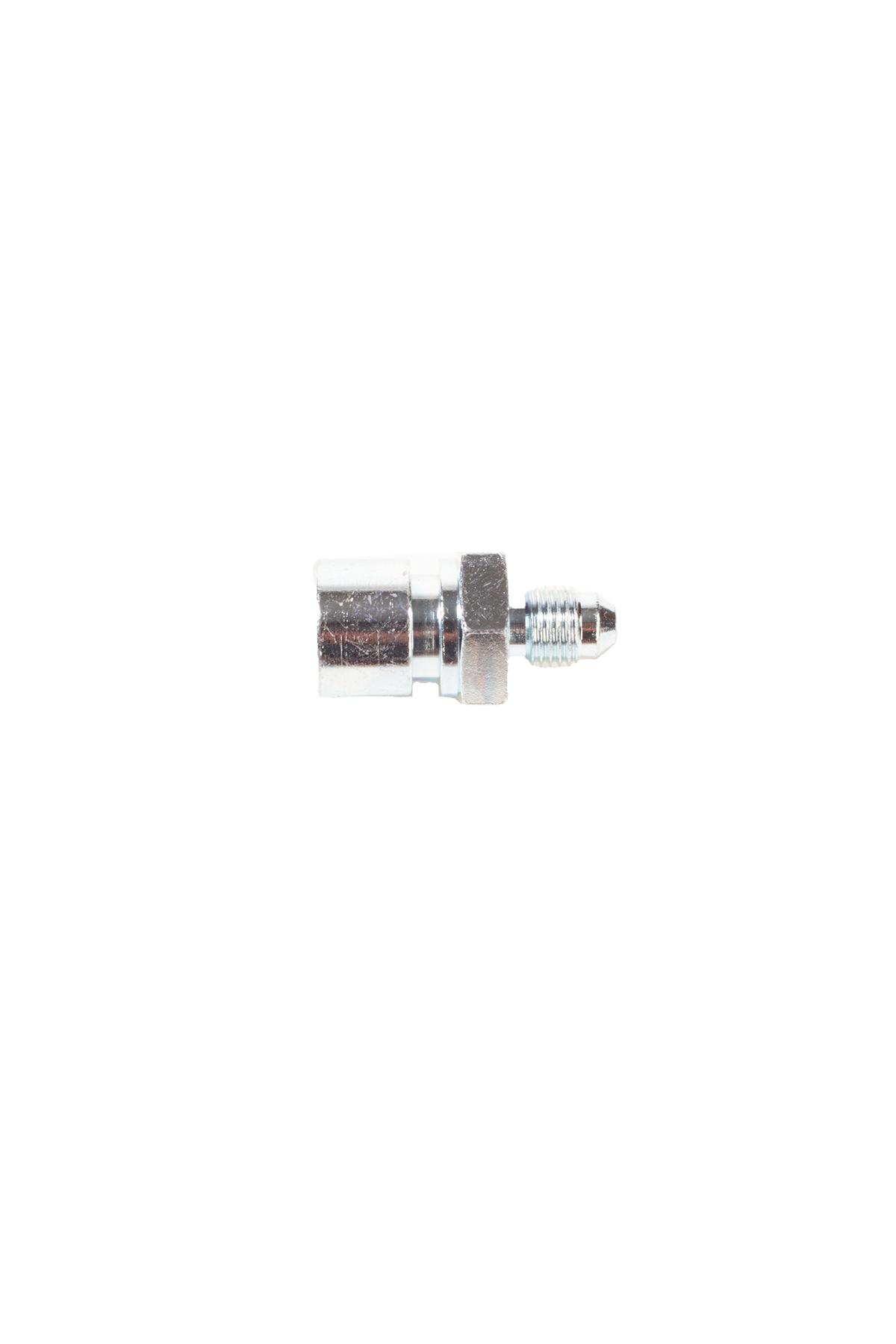

• Can use stock front and rear brake hoses. (also includes -3AN adapters)
• PTFE Hoses, Stainless reinforced, and silicone coated.
• Black in color

Please click here for product instructions.
